Export to MS Excel Document




editor.icon Export to MS Excel Document






Click Export to Microsoft Excel Document to export documents to (*.xlsx) format. The MS Excel File dialog box will open:



msexcel.export.dialog.box

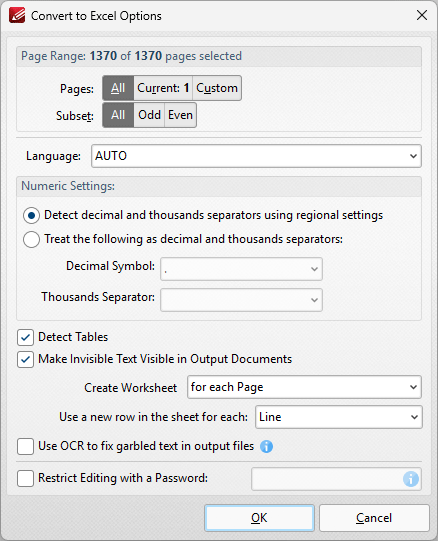

Figure 1. Convert to Excel Options Dialog Box



Use the Pages option to determine the pages to be exported to (*.xlsx) format:

Select All to export all pages.

Select Current to export only the current page.

Select Custom to export a custom page range, then enter the desired page range in the adjacent number box. Further information about how to specify custom page ranges is available here.

Use the Subset options to specify a subset of selected pages. Select All, Odd or Even as desired.

Use the Language dropdown menu to specify the language of the source document. This setting is necessary in cases where document text has the incorrect encoding and OCR is used to determine the correct unicode to use. AUTO is the default setting and the language is taken from the document properties when it is used.

Select the Detect decimal and thousands separators using regional settings box to specify the use of regional settings to determine the thousands separator in exported documents. Alternatively, select the second radio button and then select the desired symbols in the dropdown menus.

Select the Detect Tables box to detect and convert tables in converted documents.

Select the Make invisible text visible in output document box as desired.

Use the Create Worksheet dropdown box to determine whether a worksheet is created for the whole document or for each page of the document.

Select an option in the Use a new row in the sheet for each dropdown menu to determine how rows are defined in the output document.

Select the Use OCR to fix garbled text in output files box to use the OCR engine to recognize symbols, which may resolve garbled output text in cases of documents with invalid character encoding.

Select the Restrict Editing with a Password box to restrict editing in output documents, then enter the desired password in the adjacent text box.



Click OK to export the document to (*.xlsx) format.



Please note that MS Office must be installed on the local computer for this feature to operate, and Save As XPS functionality must be available in the version of MS Office being used. This functionality was added in MS Office 2007.
